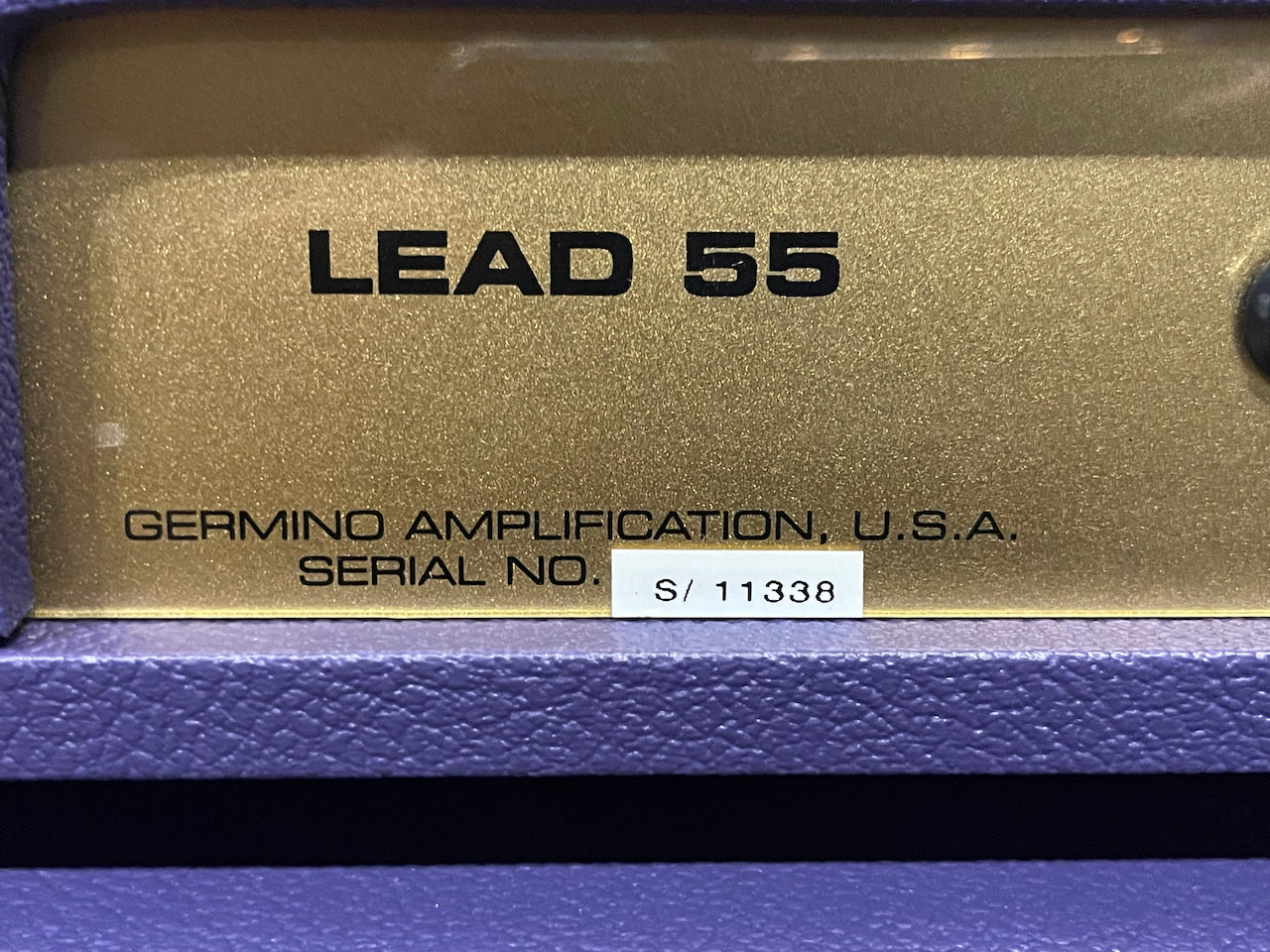

Germino Lead 55 LV Master Volume with Matching 2x12 Cabinet Purple Tolex
I've been friends with Greg Germino for 15 plus years and our love of vintage Marshall's and Les Paul's made us fast friends. Greg's amps have always been world class and the best built in the boutique market. If you're taking the plunge and getting one of these amazing amps you won't be disappointed. Please contact us for custom colors and special orders. Also make an appointment to come to the shop and try one out in person!

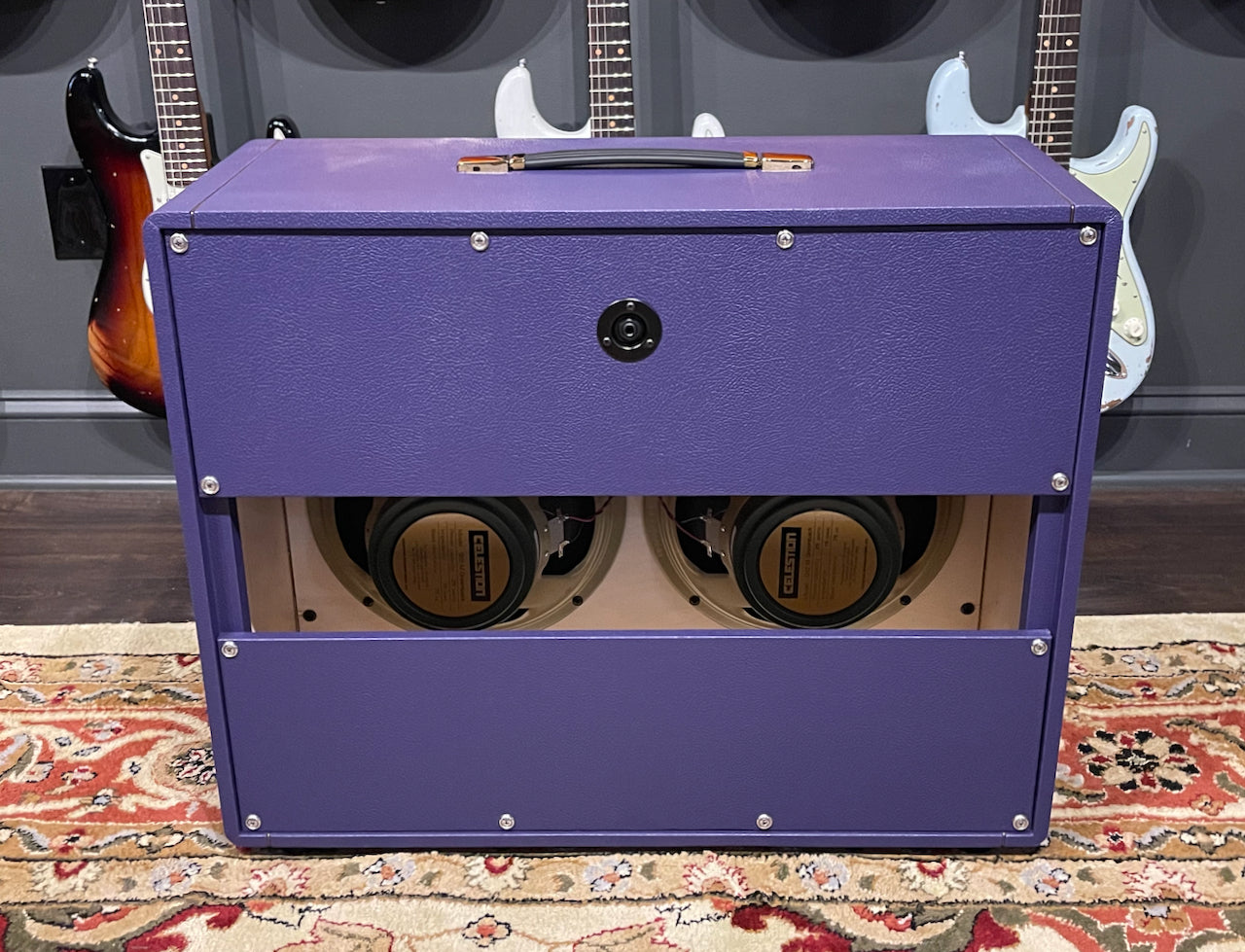

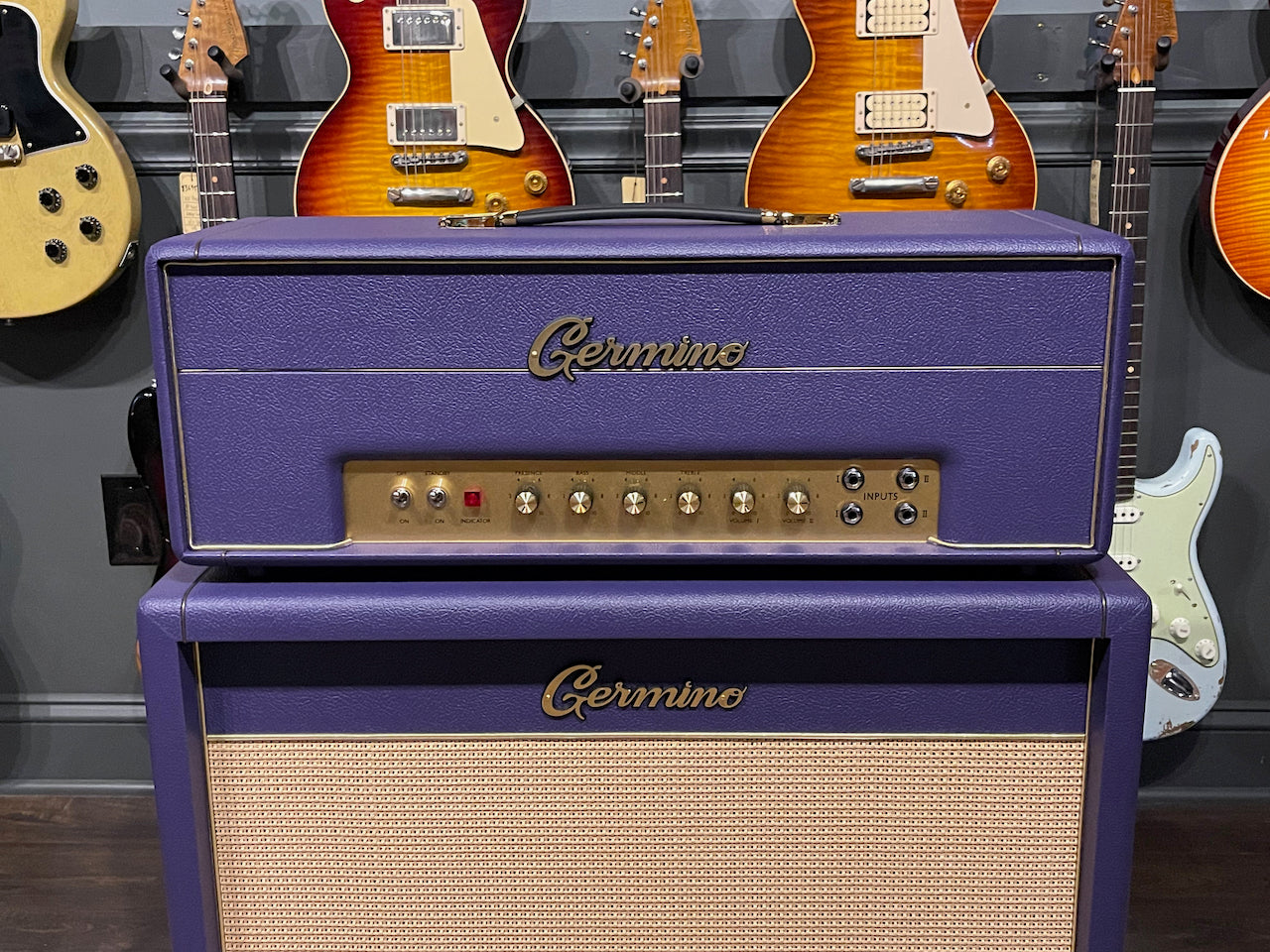

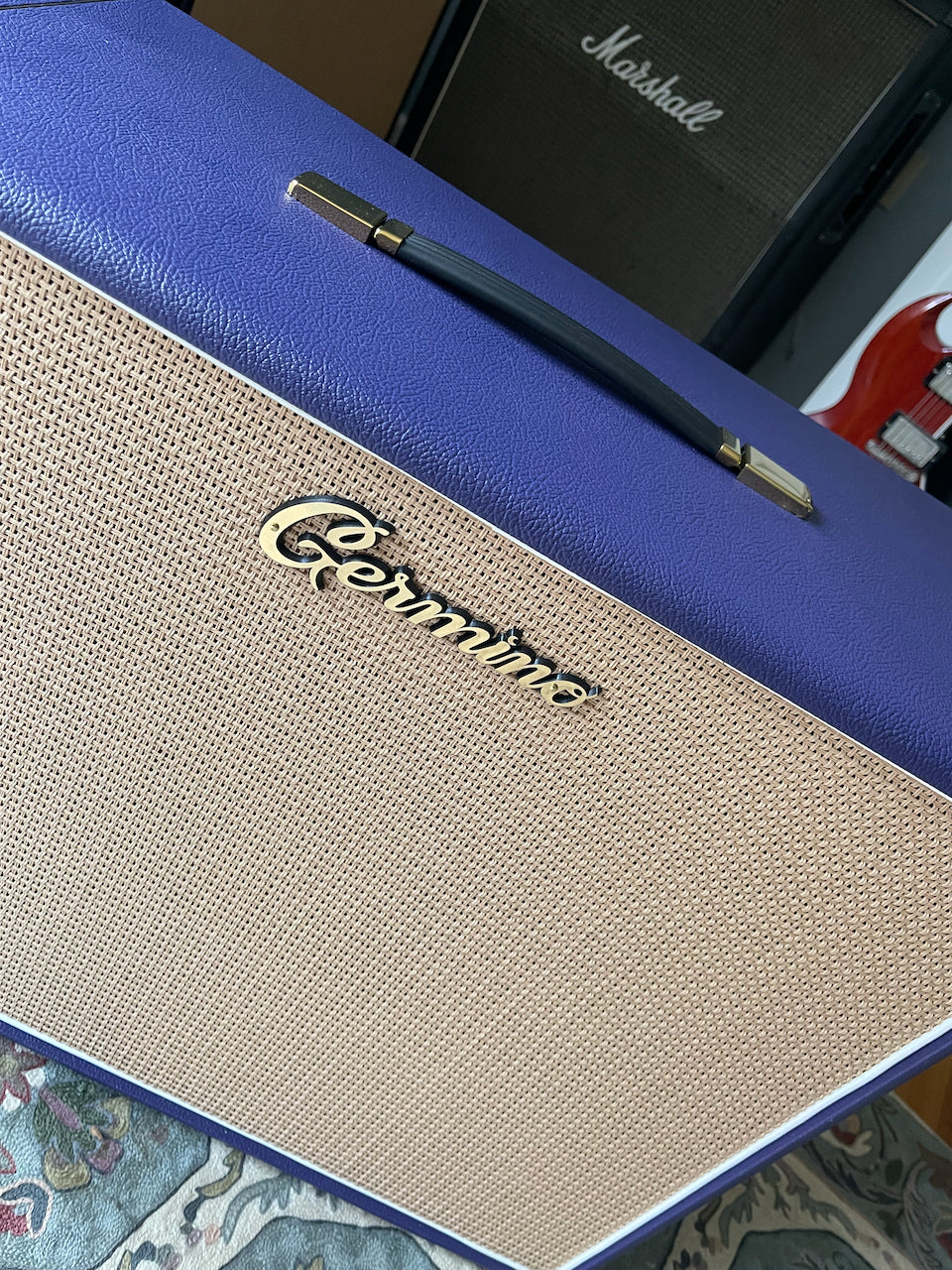

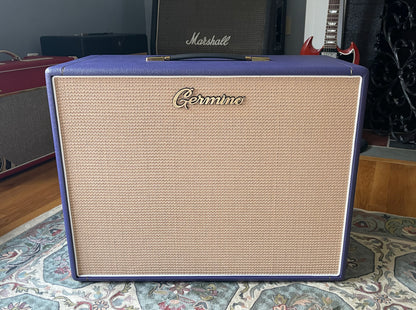

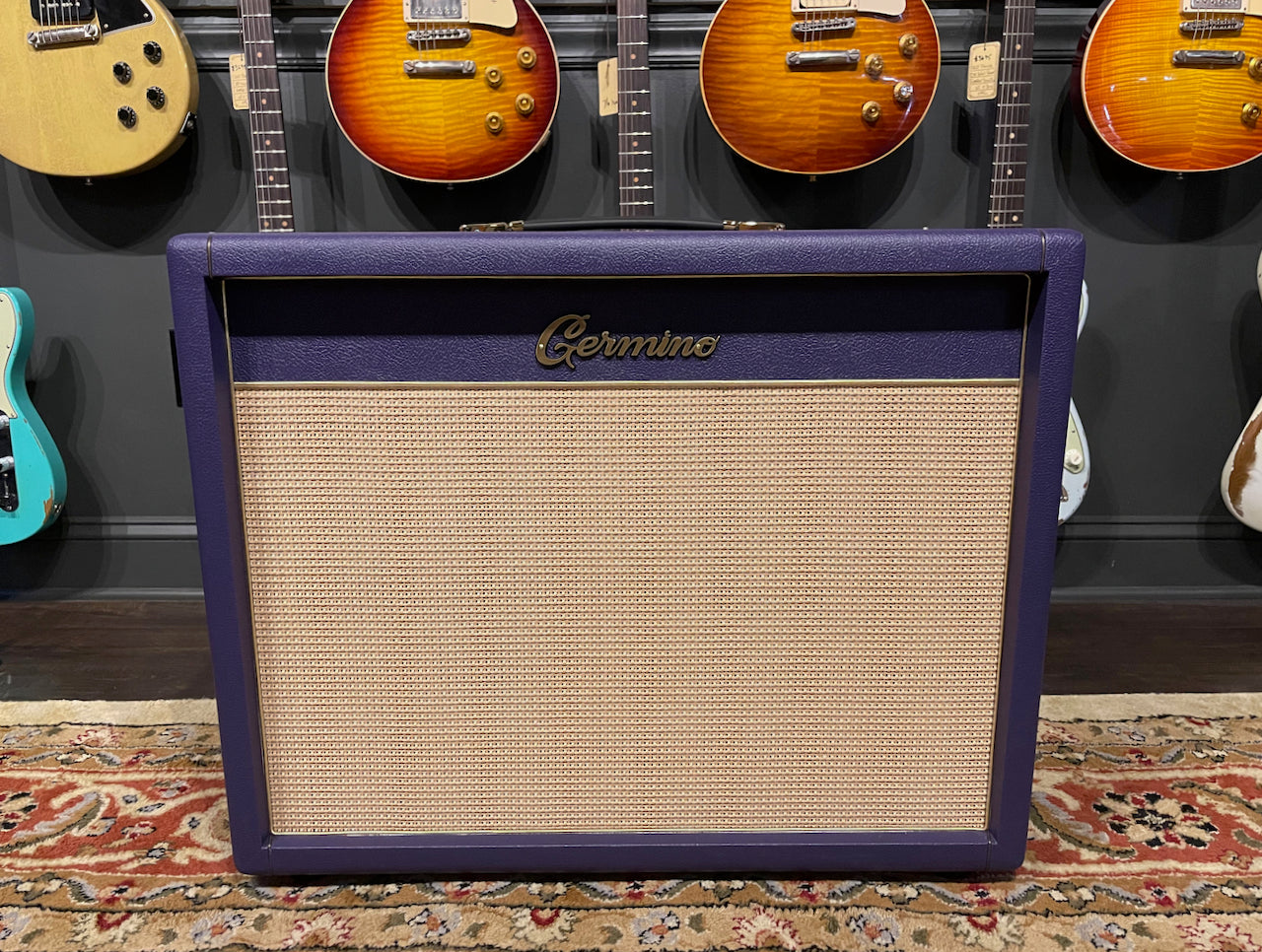

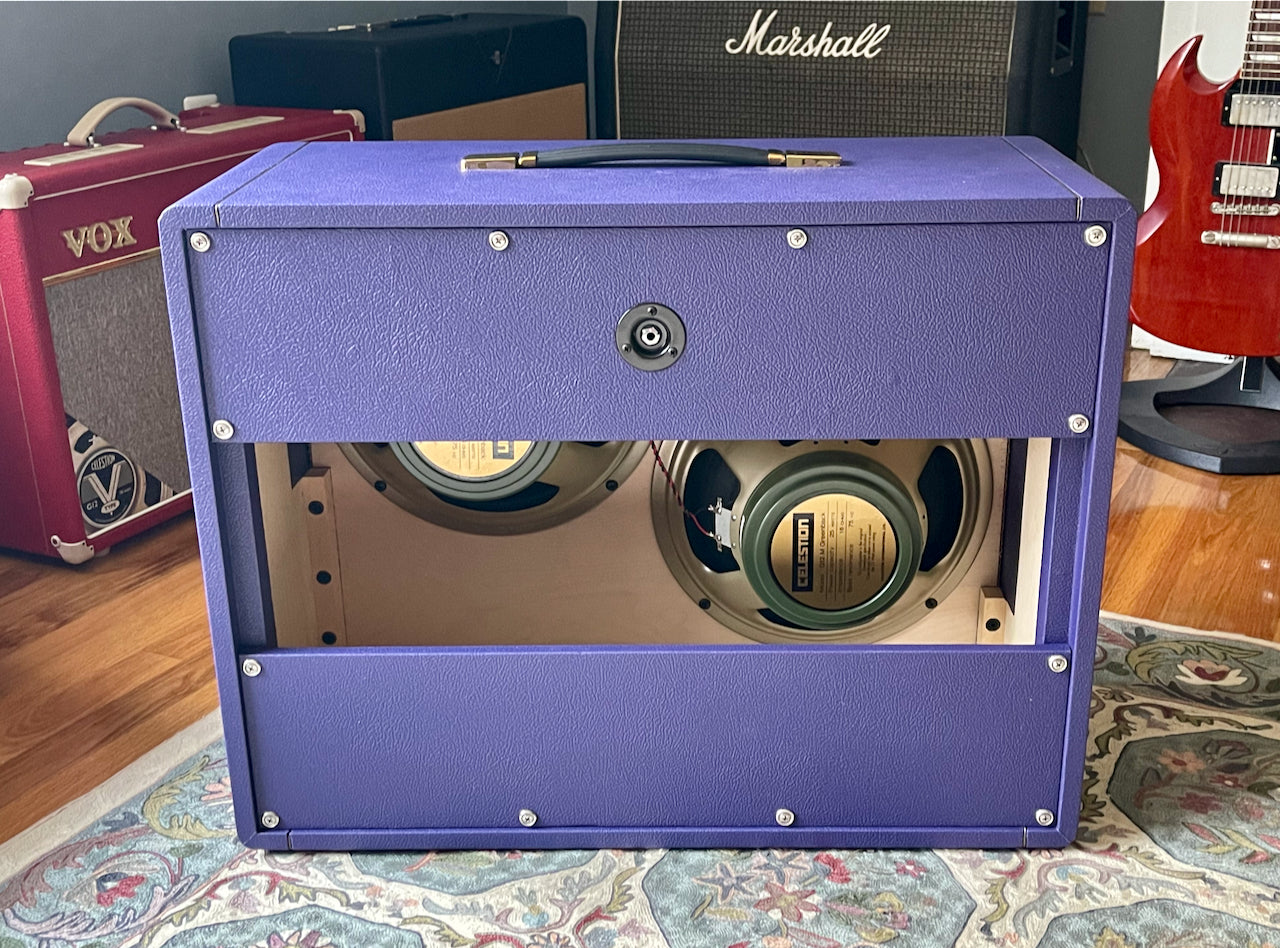

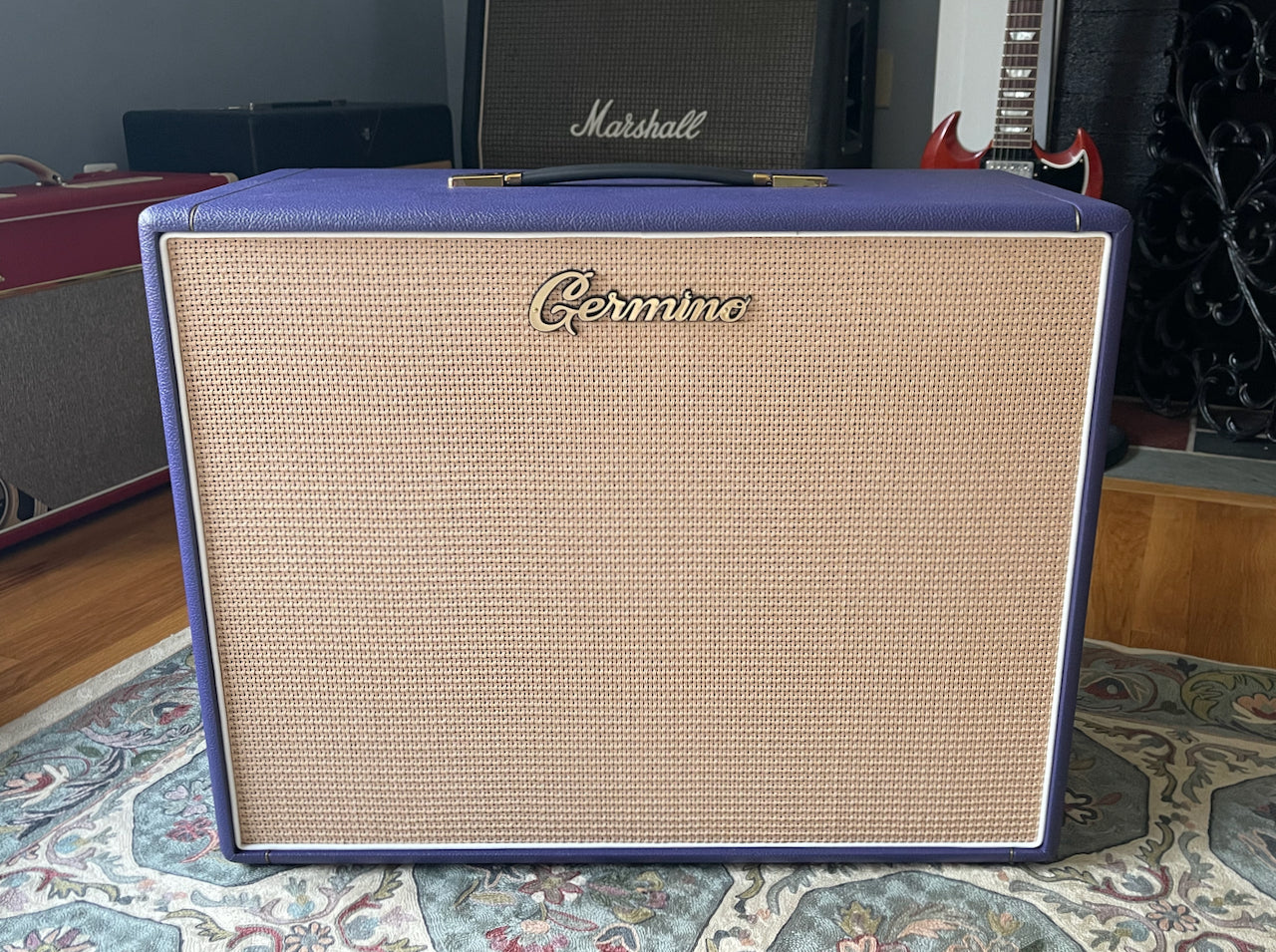

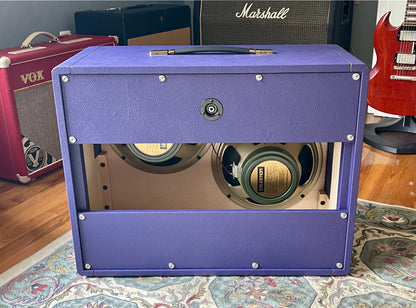

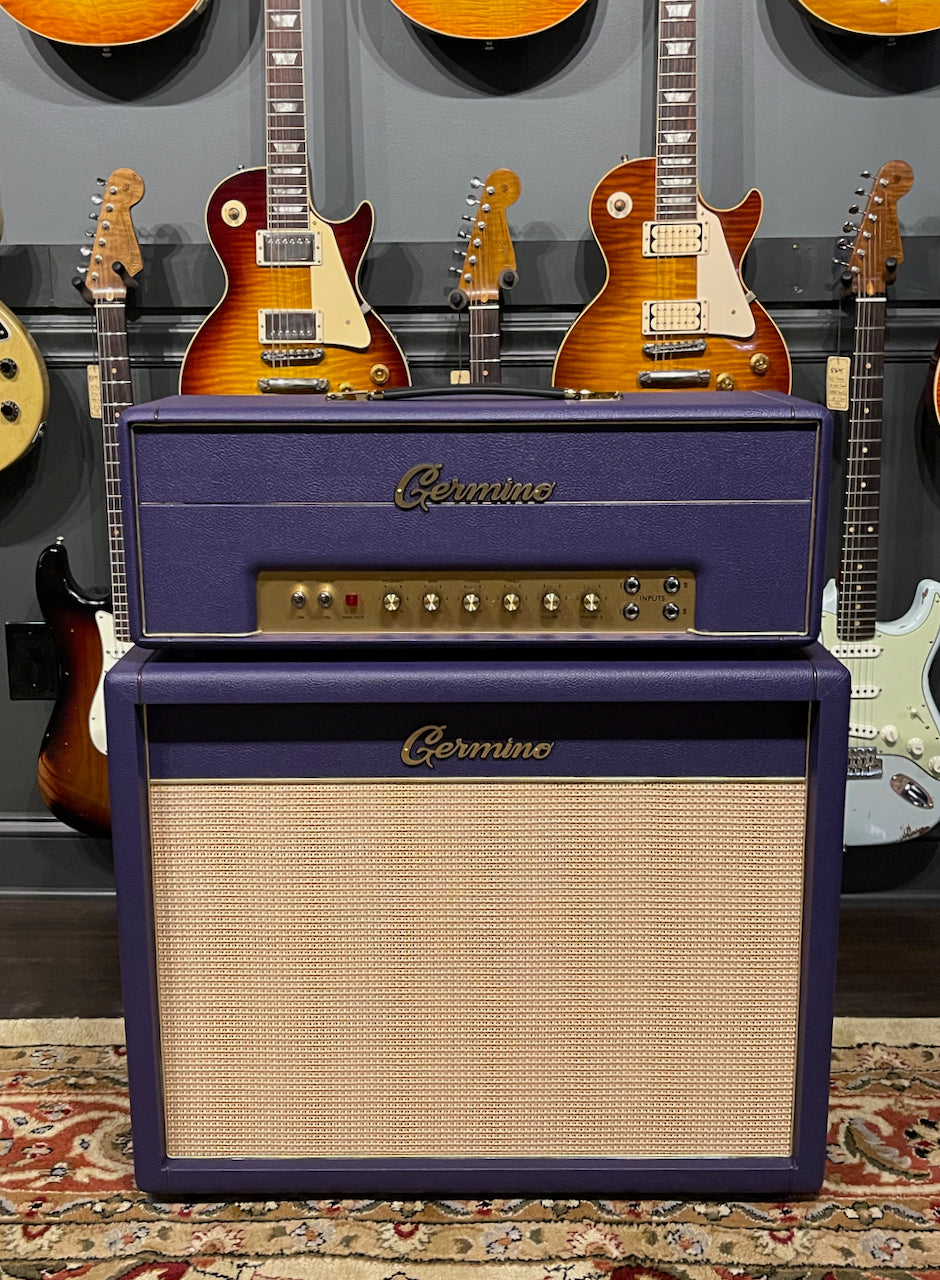

This is a head & cabinet matching set in purple tolex and you get to choose which style cabinet you'd like. Either the Style I or Style II 2x12 cabinet. Pictures of both cabinets are shown.
The Lead 55LV model uses a dual EL-34 output section and "lead" circuit values. This is the Lead circuit used in original 68-69 JMP-50 1987 models. Great crunch and upper midrange are there to cut through the mix in a sweet way that only a plexi can. Single notes are warm with great harmonics. Filtering is period correct for 68/69 JMP-50 specs.

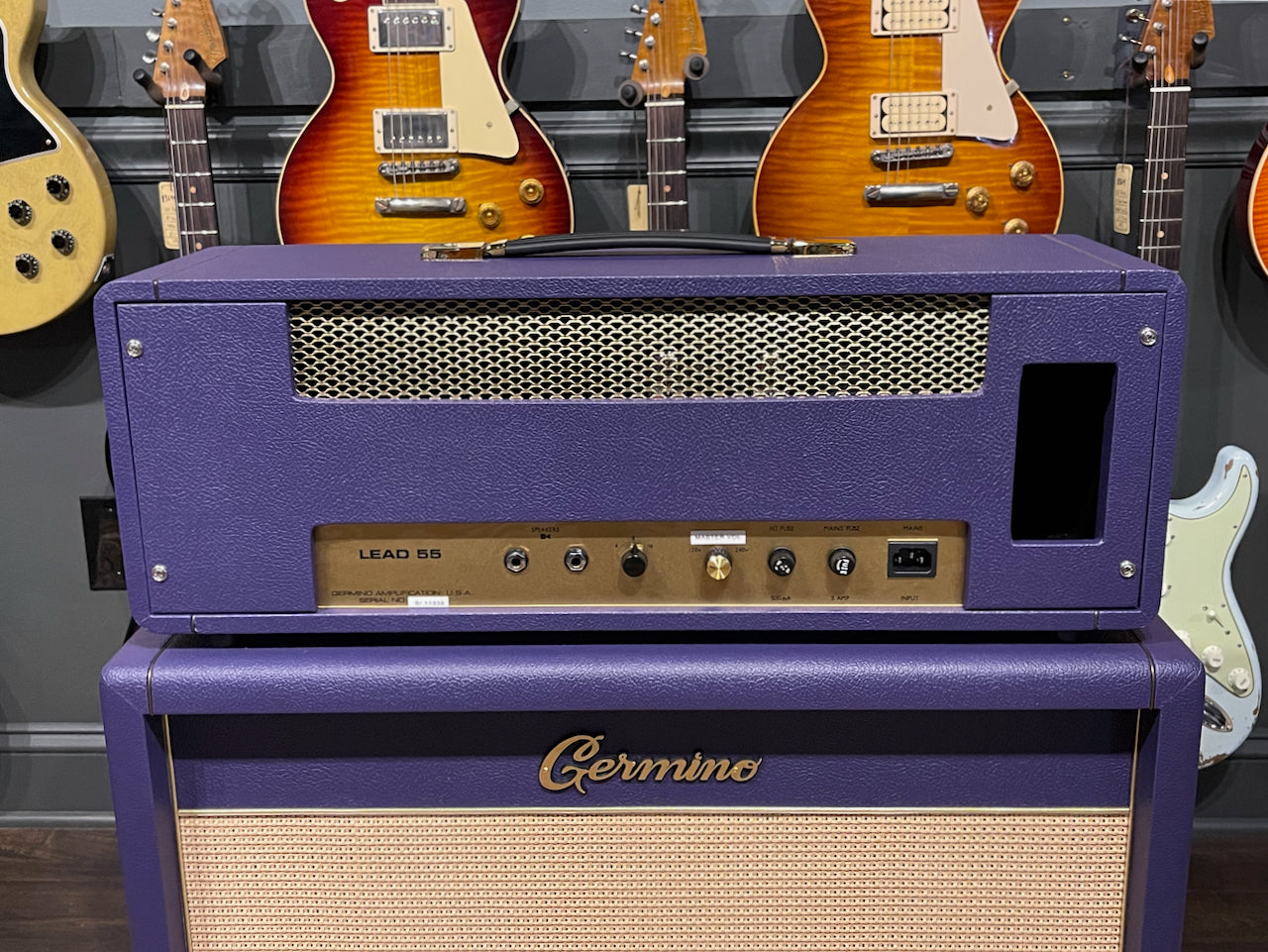

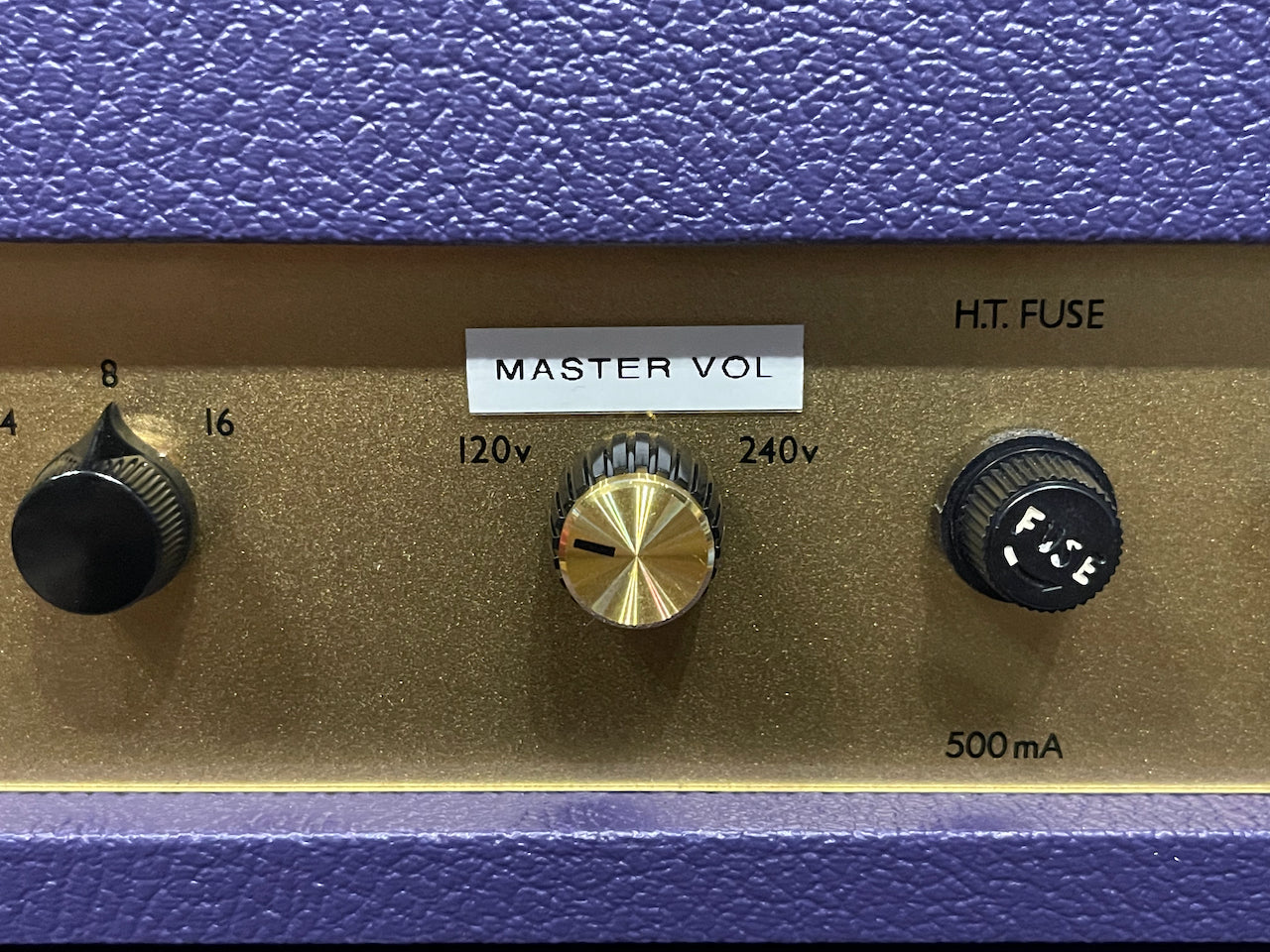

The 1202-118 power transformer which is stock for the LV model supplies 425vdc in ss rectifier mode. This model PT was used in the majority of JMP-50 amplifiers from 1967 thru 1969. Line voltage is select-able for 120, 200, 220/230 and 240 vac operation on the back panel.
Output transformer is a Drake 784-139 replica with 3.3K primary impedance. Original style laminate is used with correct slotted steel and correct "cheese head" screws. Primary and secondary windings are interleaved as originals. Speaker output is selectable for 16/8/4 ohms.
Choke is Dagnall C 1999 replica.
An incredible sounding amplifier with all the classic late 60's and early 70's sounds. Goes from a slightly crunchy clean to a thick smooth lead tone with just a twist of the guitar's volume control. This is the sound of the famed 1968/69 plexi 1987 model at it's very best.
Component list is the same as our other products. Spot welded aluminum chassis, carbon film and NOS carbon comp resistors, Mil spec potentiometers, F&T filter capacitors. Film/foil "vintage mustard style" coupling caps all hand wired on turret board.
